MODULAR PRO

Eschweiler Products (Modular Pro)

Combi Line

We present ESCHWEILER modular PRO, the new PC-based generation of analysing systems: compact, fully modular, easy and economical.

With the clear functionality the ESCHWEILER modular PRO is dedicated to serve you. In critical cases even seconds count. We follow this obligation. With its clear and easy handling the ESCHWEILER modular PRO provides fast and accurate results to give you the required informations for your further actions.


The unlimited flexibility of our new concept is a big advantage for you. Choose only those parameters which are of interest for you - any combination out of 11 parameters is allowed. Even if your workload is changed and new parameters are useful just expand the system with the channels you need.

We save your money for unnecessary investments and costs for operation and maintenance of sensors which are not required.

BARCODE READER/NETWORK

Barcode reader

  • Input of calibration bag-codes (concentrations)
  • Input of encoded patient data
  • Input of encoded QC samples

    • Network (LAN)

  • Connection of ESCHWEILER modular PRO to the clinic-internal network via LAN-interface
  • Taking over of patient- and QC-data via ODBC (open database connectivity)

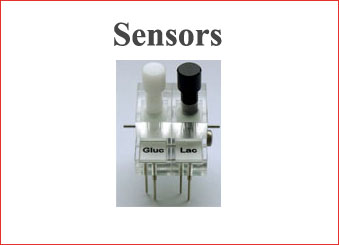

    • SENSORS

    New generation of Biosensors for glucose and lactate determination in whole blood

    Sensor Chips based on thick-film technology combine:

  • Reliable handling
  • High storage stability
  • Small size Defined quality
  • High reproducibility
  • Up to 1.000 analyses with one sensor

    • For more than 5 decades, the name ESCHWEILER has stood for high quality and reliability in blood gas and electrolyte sensors. ESCHWEILER sensors are distinguished by the precision of their measurement and their durability.

  • Reduced maintenance
  • Replaceable premembraned cartridges

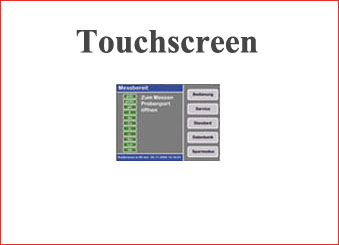

    • TOUCHSCREEN

    Operation of ESCHWEILER modular PRO by touch screen (colour-LCD display / TFT 640 x 480)

  • Easy to use, clear step-by-step instructions
  • Service- and diagnosis programs for faultless operation
  • Data base for patient- and QC-data storage and evaluation

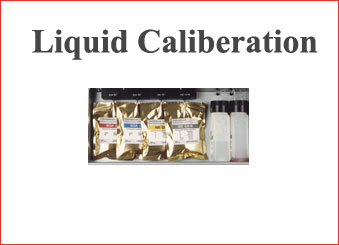

    • LIQUID CALIBERATION

    ESCHWEILER modular PRO calibration solutions are delivered in foil packets – easy to handle and individually replaceable.

  • Only 4 calibration solutions and a rinse solution to operate an ESCHWEILER modular PRO with complete sensor configuration for analysis of blood gases, electrolytes and metabolites
  • Only 4 calibration solutions and a rinse solution to operate an ESCHWEILER modular PRO with complete sensor configuration for analysis of blood gases, electrolytes and metabolites

    • The proven ESCHWEILER blood gas sensor liquid calibration system is also built into the ESCHWEILER modular PRO. Costs for an external calibration gas supply or gas mixing device are eliminated. A mains power lead is enough to make ESCHWEILER modular PRO portable – it can be deployed anywhere at the "point of care".

    TECHNICAL DATA

    Messured Parameter Range Resolution
    pO2 0 - 800 mmHg (SI-units selctable) 0,1 mmHg
    pCO2 5 - 200 mmHg (SI-units selctable) 0,1 mmHg
    pH 6,000 - 8,000 0,001 pH
    total-hemoglobin (tHb) 3 - 30 g/dl 0,1 g/dl
    barometric pressure 500 - 900 mmHg(SI-units selectable) 1,0 mmHg
    Na+ 100 - 200 mmol/l 0,1 mmol/l
    K+ 2 - 10 mmol/l 0,1 mmol/l
    pH 6,000 - 8,000 0,001 pH
    Ca++ 0,25 - 2,5 mmol/l 0,01 mmol/l
    Li+ 0,25 - 2,5 mmol/l 0,01 mmol/l
    CI- 80 - 200 mmol/l 1,0 mmol/l
    glucose 0 - 30 mmol/l 0,1 mmol/l
    lactate 0 - 20 mmol/l 0,1 mmol/l
    Input Parameters Range Resolution
    patient temperature 13 - 43 °C 0,1 °C
    hemoglobin (tHb) 0 - 30 g/dl (if not measured) 0,1 g/dl
    FIO2 15 - 100 % only relevant for AaDO2
    RQ 0,7 - 1,0 only relevant for AaDO2
    Calculated Prameter Range Resolution
    hydrogen ion conc. (H+) 10 - 1000 0,1 nmol/l
    actual bicarbonate(HCO3-A) 10 - 50 0,1 mmol/l
    standard bicarbonate(HCO3-S) 10 - 50 0,1 mmol/l
    base excess (BE) -25 - 25 0,1 mmol/l
    standard base excess(SBE) -25 - 25 1,0 mmol/l
    total CO2 (T CO2) 10 - 50 0,1 mmol/l
    buffer base (BB) 0 - 100 0,1 mmol/l
    O2 saturation of hemoglobin (OO2sat) 20 - 100 0,1 %
    O2 content or concentration (O2CT) 0 - 40 0,1 %
    partial O2-pressure at 50% O2-sat (P50) 10 - 50 0,01 mmHg
    alveolar to arterial oxygen-tension grade (AaDO2) 0 - 800 0,1 mmHg
    anion gap (A-GAP) 0 - 99 0,1 mmol/l
    SHUNT 0 - 50 0,1 %
    acid base status relevant diagnosis recorded on printer
    hematocrit (Hct) 0 - 100 % 0,1 %
    Data input
    touchscreen
    barcode reader
    Data Output
    display color-LCD-display (TFT- 640 x 480)
    printer fast, low-noise thermoprinter
    interface network (LAN), USB
    data base integrated data bases for patient- and QC-data
    Calibration
    automatic calibration
    economy mode
    Specimen
    specimen container capillary, syringe and others
    specimen material whole blood, serum, plasma / respiratory gas
    Electrical Data
    voltage 115 V resp. 230 V
    frequency 50/60 Hz
    ambient temperature 12 - 32 °C
    Dimensions / Weight
    height 400 mm
    width 445 mm
    depth 413 mm
    weight appr. 18 kg

    Specifications are subject to change without notice.
